Particle filtration

Fiatec is the independent reference laboratory for manufacturers around the world – including those in the automotive industry

Not only because we have over a quarter of a century of experience, but also because we carry out reliable tests in accordance with international standards and specifications – often developed in close cooperation with the OEM.

Our test results are used in:

  • Automotive industry
  • Aerospace and aviation
  • Marine applications
  • Agricultural vehicles
  • Ventilation and building technology
  • EPA and HEPA filters
  • Gas turbine systems (GT filter elements)
  • Pulse-off filter elements
  • Electrostatic precipitators
  • Special tests on e.g. pipette tip filters or headlight ventilation systems
  • Medical filter applications
  • Anti-allergenic bed linen
  • Room air purifiers
  • Allergy reduction
  • Filter media
  • Customized tests
  • Development projects

Objective testing – individual or standards-based

Fiatec offers comprehensive testing of filters and filter media to the highest international standards. Our services include testing according to many current or still applied standards in various filter application areas such as ISO 16890, EN 779, EN 1822 / ISO 29463, ASHRAE 52.2 or ISO 11155 / DIN 71460. Our know-how ensures maximum reliability, which is important for internationally operating industrial companies as well as for regional suppliers.

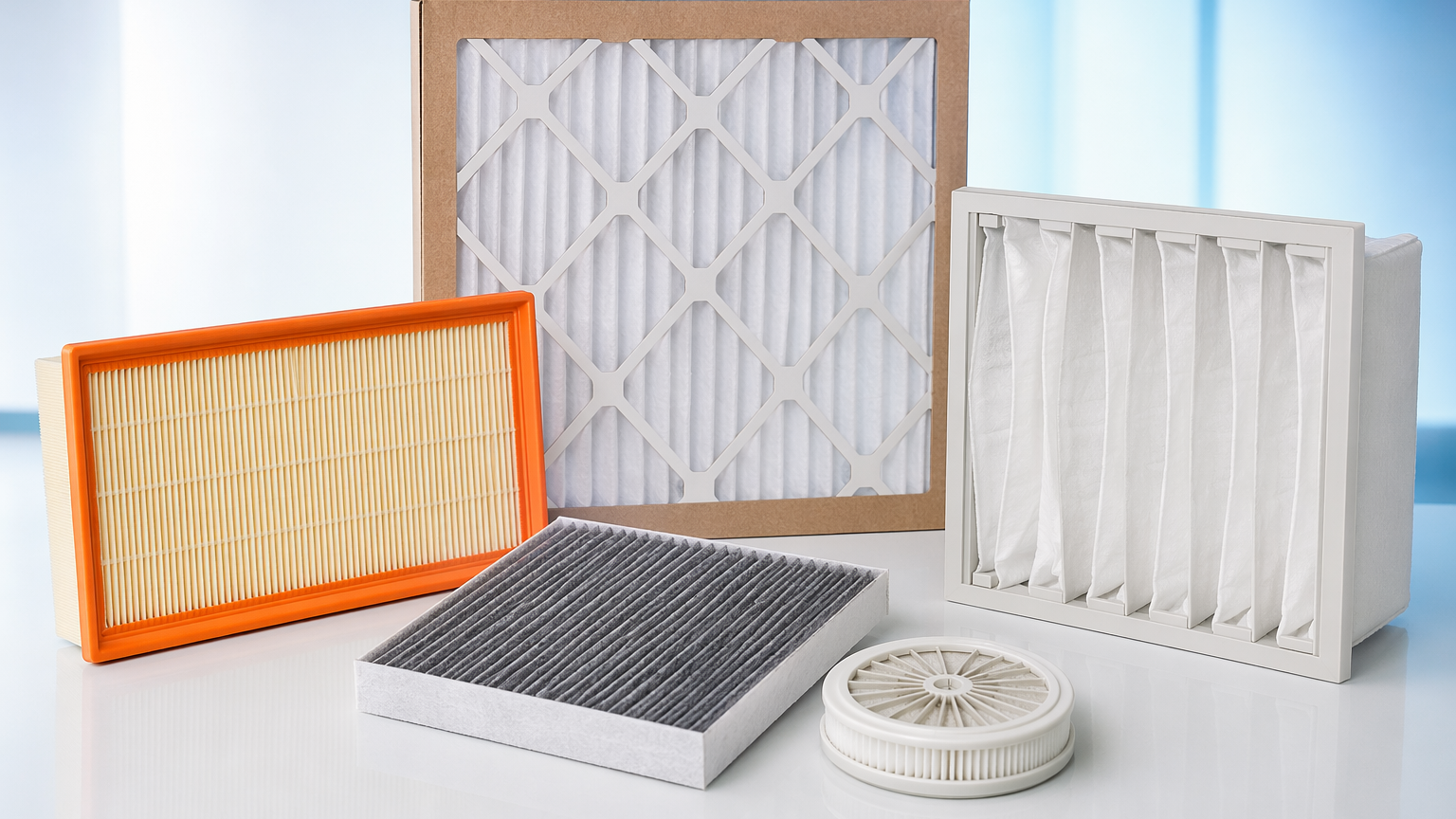

Filter Zusammenstellung für Seite PARTIKELFILTRATION

Tested, validated, safe – so that your filters deliver what the cover sheet promises

Our particulate filter tests ensure that your filters function optimally and comply with the applicable standards or specifications.
Our services include, among others:

Differential pressure measurements
Measurement of the pressure difference to ensure the filter is functioning properly.

Particle separation efficiency measurements based on different aerosols
Precise determination of your filter’s separation efficiency under various conditions.

Dust Holding Capacity (DHC) testing
Measurement of the filter’s ability to collect dust.

Verification of the functionality of hypoallergenic bedding
Special tests to confirm the effectiveness of products for allergy sufferers.

Use of various test dusts and aerosols
Use of test dusts and aerosols in size ranges from 20 nm to 20 µm to ensure the effectiveness of the filters under demanding conditions.

Laboratory aging through climate cycling tests, IPA discharge, or dust loading
Conducting tests according to various specifications to assess the durability of the filter elements and their performance values during simulated aging.

Many other specification and standard tests

Recognized worldwide:
our results

  • ISO 11155-1 / DIN 71460-1
    Testing of particle filters for vehicle cabin air filters

  • ISO 16890 (ePM1 / ePM2.5 / ePM10 / ISO Coarse)
    Classification and test methods for air filters in general ventilation technology (e.g. building supply air)

  • EN 779:2002 / 2012
    Classification of air filters for general ventilation applications (predecessor of ISO 16890)

  • EN 1822-3 / ISO 29463-3
    Testing and determination of the integral filtration efficiency of HEPA and ULPA filter media

  • EN 1822-5 / ISO29463-5
    Classification and testing of EPA, HEPA and ULPA filter elements

  • EN15695-2
    Testing and requirements of filter elements for driver's cabs in agriculture

  • ASHRAE 52.2
    Testing and determination of particulate removal efficiency of air filters (MERV rating) for HVAC applications (US standard similar to EN779)

  • ARAMCO 32-SAMSS08
    Saudi Aramco testing specifications for air filters in the oil and gas industry (link to 2.3 Gas turbine / Aramco)
  • ISO 5011
    Testing and comparison of the performance of air filters for combustion engine intake air

  • IEC 60335-2-69, Annex AA (H class)
    Requirements and testing of filter elements for commercial vacuum cleaners

  • ISO 29461-1
    Determination of the T-class of air filters for turbomachinery and general HVAC applications

  • ISO 29461-3
    Burst test / mechanical strength of air filters for turbomachinery and general HVAC applications

  • ECARF criteria
    Evaluation of the allergy friendliness of household products (e.g. room air filters and vacuum cleaners) according to the ECARF specification


Coming up soon:

  • ISO 29461-2
    Test method for water separation and water resistance of air filters for turbomachinery and general HVAC applications

  • ISO 29461-4
    Test methods for static filter systems in off-shore environments

    ... and other standards as well as customer-specific tests.

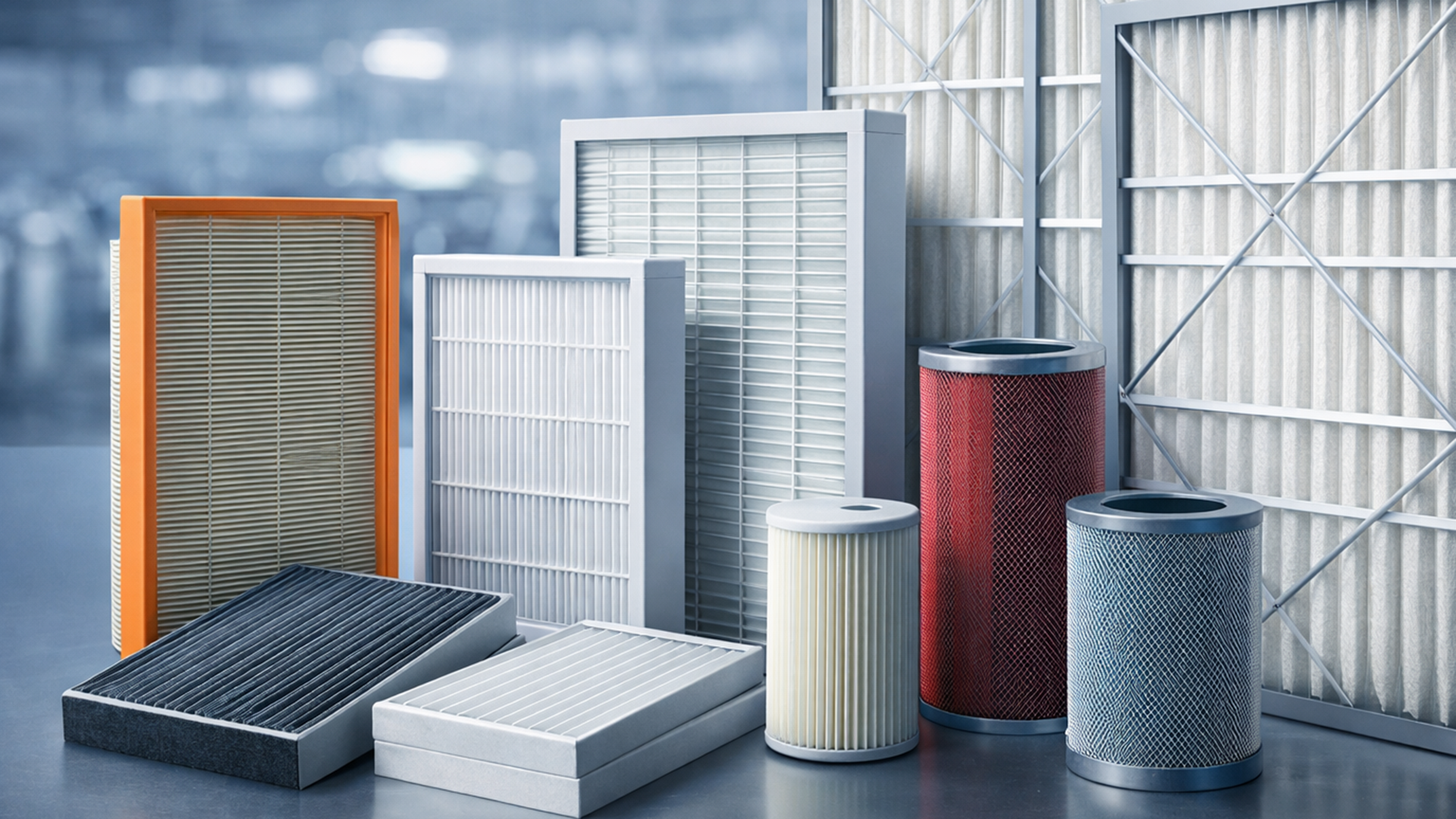

260326_CERTANIA_Fiatec_AI_Various_industrial_air_filters

Particle separation and analysis methods

Highly specialized measuring methods enable us to precisely determine particle separation. All measuring devices used come from renowned manufacturers from all over the world and are regularly maintained and checked.


Aerodynamic particle measurement
Determination of particle size and distribution based on aerodynamic properties.

Optical/geometric particle counting
Counting and sizing of particles using optical analysis methods.

Condensation nucleus counting and particle classification
Determination of the number and size of ultrafine particles by condensation nucleus counting and determination of the electromobility diameter.

Use of various test substances
We use a variety of test substances, such as ISO 12103-1 Test Dust, DEHS, NaCl, KCl, JIS dusts, ASHRAE dust and even pollen, to ensure that your filters are tested under the conditions you require.
